regular expressions

definition

a regular expression can be defined inductively over an alphabet $\Sigma$:

$\emptyset$ is a regular language
$\epsilon$ is a regular language
$a$ (as a singleton) for $a \in \Sigma$ is a regular language
if $R_1$ and $R_2$ are regular, then $R_1 \cup R_2$ (union), $R_1 R_2$ (concatenation), and $R_1^$ (and $R_2^$) (kleene star) are also regular.

we use regular expressions to describe what the regular language (the set of accepted strings) is.

other than the notations we have encountered before (union, concatenation, star), we have two new ones:

$R^+$ is a shorthand notation for $R R^*$ for a regular expression $R$.
- all strings that are $1$ or more concatenations of string from $R$.
$R^k$ is a shorthand notation for the repeat of $R$, $k$ times.
- example: $1^5 = 11111$

in a regular expression, $*$ have the highest precedence, and $\cup$ have the lowest precedence.

some properties of languages:

$R \epsilon = R$
- concatenating an empty string yields the same language.
$R \cup \emptyset = R$
- same rationale as above
$R \cup {\epsilon} \neq R$
- it is not like the above. we add an empty string to the language, so it can match an empty string.
$R \emptyset = \emptyset$
- any language concatenated with empty set is always an empty set.

lemma: if a language is described by a regular expression, then it is regular.

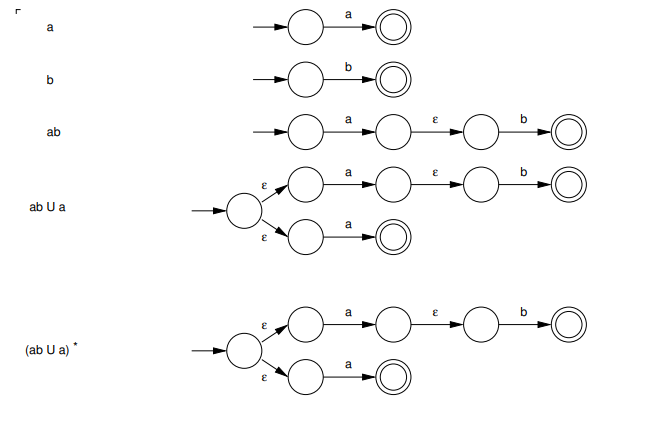

we use each rule defined at the start one by one, to build an nfa from regular expressions. for example:

this process follows 5 steps, each using one rule:
